Cordless Tool Controller INSIGHTqcx Series
Parts Information
Save These Instructions

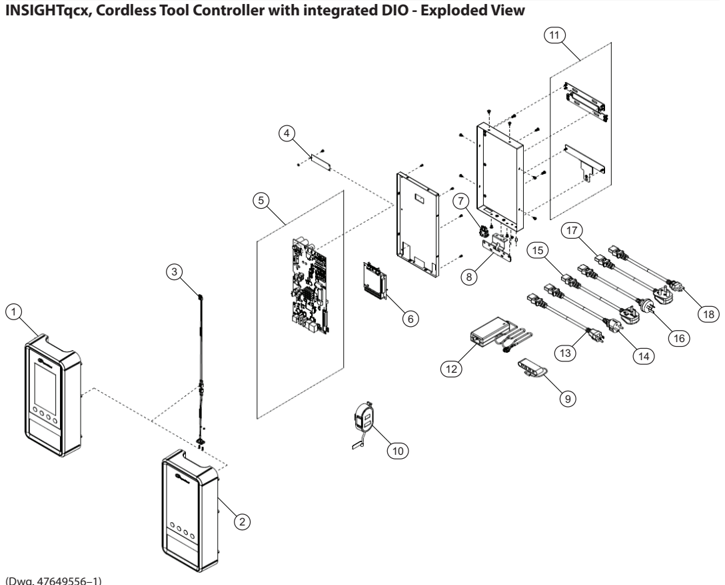

(Dwg. 47649556-1)
INSIGHTqcx, Cordless Tool Controller with integrated DIO - Parts List
| Item | Part Description | Part Number |
|---|---|---|
| - | Plastic Housing Assembly | |
| 1 | Plastic Housing Assembly Kit - DType (Display) | QCX2-A830D-K |
| 2 | Plastic Housing Assembly Kit - MType (Non-display) | QCX2-A830M-K |
| * | Label Kit, Processing Module | QCX2-301-K |
| * | Brand Label | - - - |
| * | Model Serial Number Label (white) | - - - |
| * | Port Input Label | - - - |
| 3 | Power Cable, 24V | QCX-CABLE-24V-K2 |
| 4 | SSD Assembly Kit with Standard License | QCX2-SSD-S-K |
| M.2 SSD Card | - - - | |
| Screw, M3x5mm,Pan Head | - - - | |
| Spacer, Unthreaded, 2.4mm High, 3mmI.D. | - - - | |
| 5 | Single Board Computer Kit (SBC) | QCX2-499-SBC-K |
| Single Board Computer Board | - - - | |
| * | EMI Shielding, Foam | - - - |
| 6 | DIO Connector Board | QCX2-499-DIOBH |
| 7 | Power Switch | QCX-410-K2 |
| 8 | Cable Retention Bracket | QCX-366-C-K2 |
| 9 | USB Hub 4-Port Portable USB 2.0 with Built-in Cable | QCX-USB-HUB |
47649556_ed7
| Item | Part Description | Part Number |
|---|---|---|
| 10 | QCX External Radio | TA-VD1T-888-2C |
| * | Mounting Bracket | QCX-366-K2 |
| 11 | Bracket, Mounting Kit | QC-A365-K2 |
| Bracket | - - - | |
| Bracket Wall Mount | - - - | |
| Screw, M4X10, Pan Head | - - - | |
| 12 | Power Supply, 24V | QCX-A24V-PS-K2 |
| 13 | Cord, US, Canada, and Mexico | QCX-CORD-US-K2 |
| 14 | Cord, EU | QCX-CORD-EU-K2 |
| 15 | Cord, UK | QCX-CORD-UK-K2 |
| 16 | Cord, China | QCX-CORD-CN-K2 |
| 17 | Cord, India | QCX-CORD-IN-K2 |
| 18 | Cord, Brazil | QCX-CORD-BR-K2 |
* Indicates not illustrated.

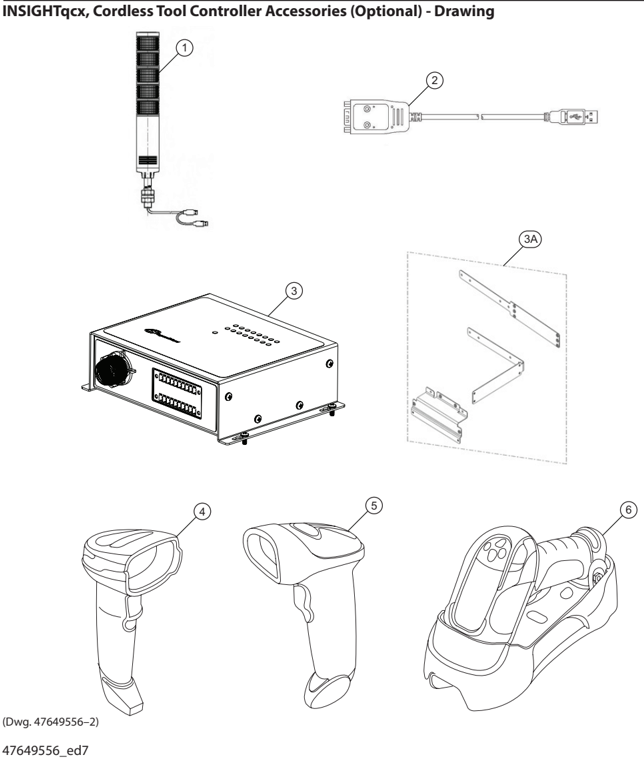

INSIGHTqcx, Cordless Tool Controller Accessories (Optional) - Parts List
| Item | Part Description | Part Number (CCN) |
|---|---|---|
| 1 | USBTower Light | QC-TL-4 (47601629) |
| 2 | Serial Interface Adapter | QC-ADPT-1 (47601630) |
| 3 | Digital IO Box, 8 Channel (includes 3A) | QC-DIO-8CH (47617332) |
| 3A | DIO Box Mounting Bracket Kit | QC-DIO-366-K (47628739) |
| 4 | Bar Code Scanner (1D and 2D) | QC-BC-SCAN-1 (47625754) |
| 5 | Bar Code Scanner (1D) | QC-BC-SCAN-2 (47625755) |
| 6 | Bar Code Scanner, Wireless (1D) | QC-BC-SCAN-WL (47625756) |
Parts and Maintenance
When tool life has expired, it is recommended that the tool be disassembled, degreased and parts separated by material for proper recycling. Tool repair and maintenance should only be carried out by an Authorized Service Center.
Refer all communications to the nearest Ingersoll Rand office or distributor.
Related Documentation
Manuals can be downloaded from ingersollrand.com
For additional information, refer to:
Product Safety Information Manual 24074205
Product Information Manual 47649557
