Technical Specification of Durofix RZ Wrench Series

This document is a technical specification for the Durofix RZ series of wrenches. It describes oil pulse technology, data storage, automatic torque shutdown, and cooling features. Technical specifications for RZ2013 and RZ4014 models are provided, along with comparisons to products from other brands.

Brand: Durofix Document type: Спецификация Status: Обработан Categories: Техническая спецификация Created: 2026-02-17 Updated: 2026-02-18
EN RU

PRO-Assembly Tools: Oil Pulse Tools

Series

RZ40


RZ20

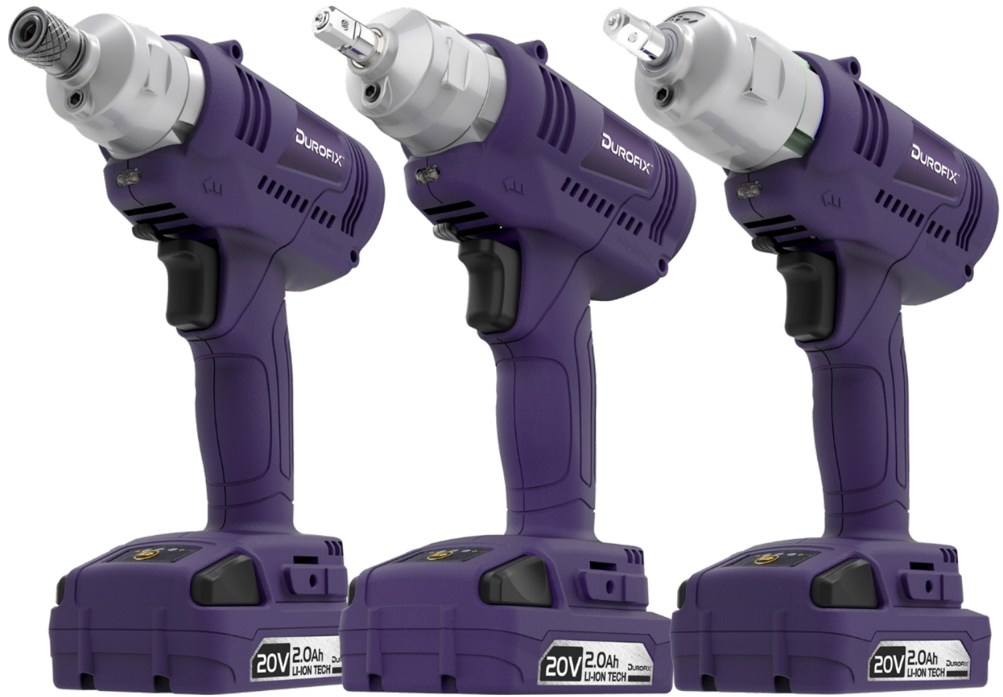

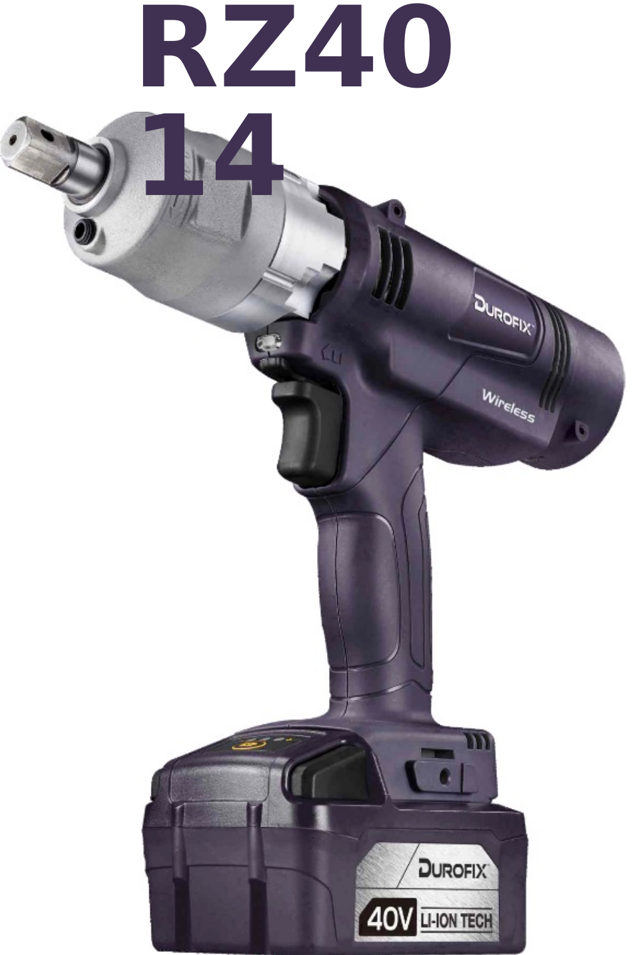

RZ4014 OIL PULSE

  • low vibration, low reaction, and speedy fastening.
  • INDUSTRIAL OIL PULSE TECHNOLOGY Connecting the Oil Pulse Unit directly to brushless motor, low noise,

New designed built-in cooling fan reduces heat of pulse unit contributing to stable operation.

INNOVATIVE COOLING TECHNOLOGY (Patent-Pending)

  • Mechanically adjust Auto Shut-off torque.

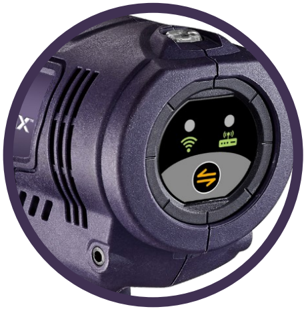

Built-in OK/NG Data Storage up to 1000 tightening cycles, Data Communication & Extraction using USB-Dongle or DR002. ADJUSTABLE PRECISION SHUT-OFF FUNCTION

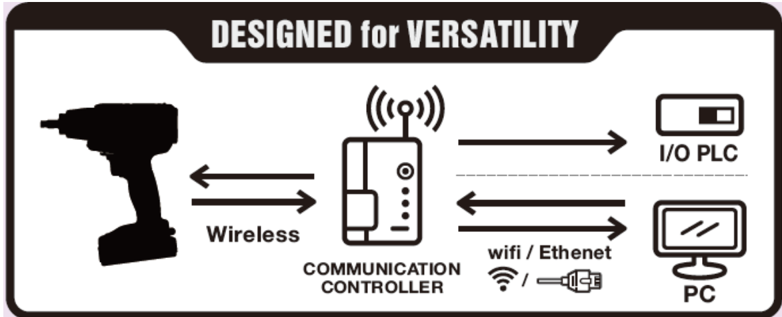

WIRELESS DATA COMMUNICATION

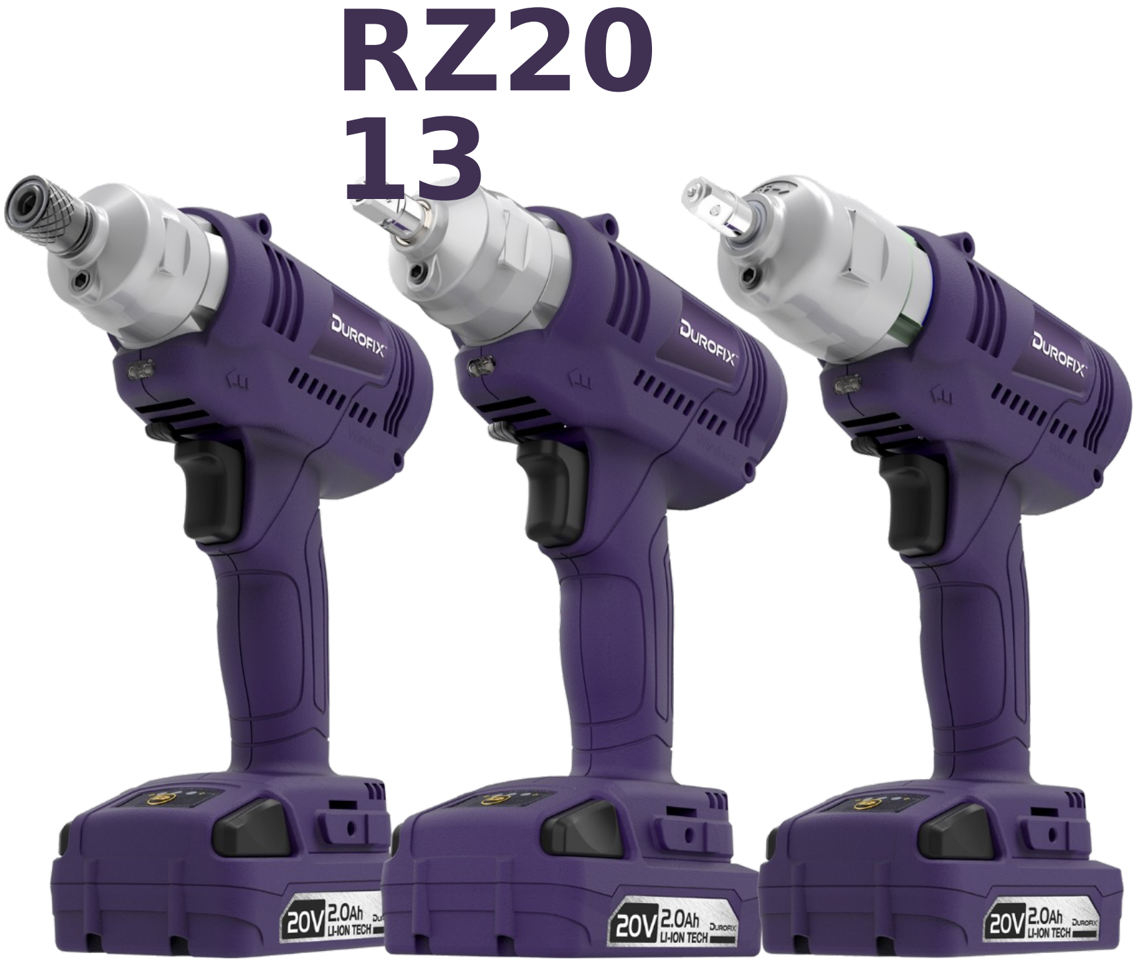

RZ2013 OIL PULSE

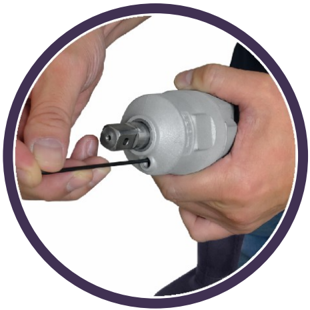

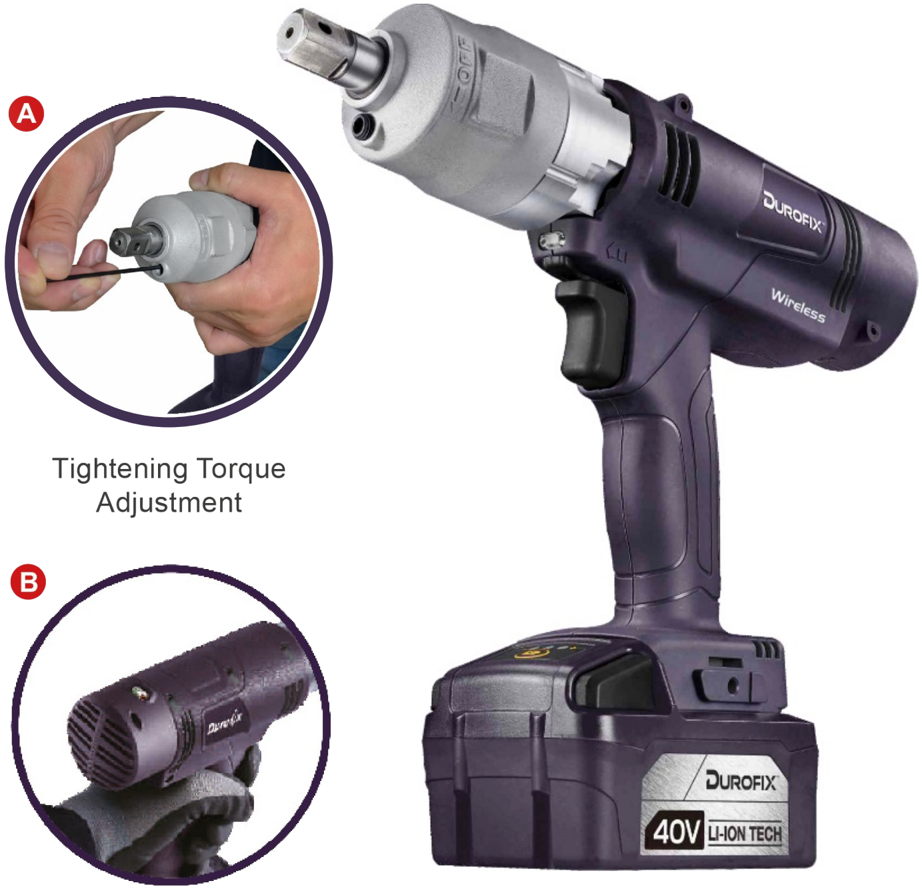

Tightening Torque Adjustment


DR002 & DR001 Connection Availability

  • INDUSTRIAL OIL PULSE TECHNOLOGY Connecting the Oil Pulse Unit directly to brushless motor, low noise, low vibration, low reaction, and speedy fastening.

New designed built-in cooling fan reduces heat of pulse unit contributing to stable operation.

INNOVATIVE COOLING TECHNOLOGY (Patent-Pending)

  • Mechanically adjust Auto Shut-off torque.

Built-in OK/NG Data Storage up to 1000 tightening cycles, Data Communication & Extraction using USB-Dongle or DR002. ADJUSTABLE PRECISION SHUT-OFF FUNCTION

WIRELESS DATA COMMUNICATION

Oil Pulse Tools

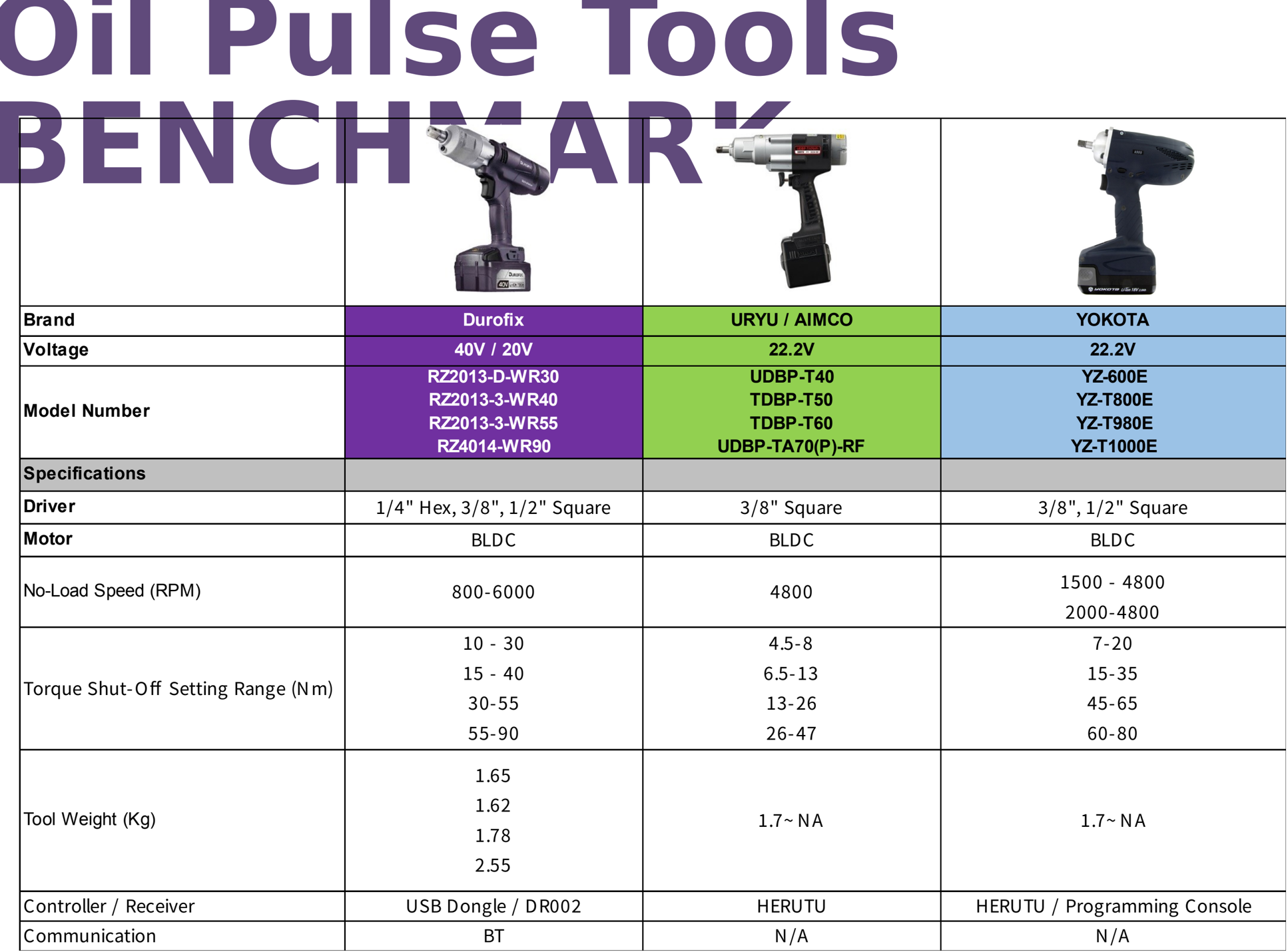

SPECS COMPARISON WITH OTHER BRANDS

※1； Max Value at Hard Joint

Models Torque Ranges ※ 1 Weight *excl. Battery Tightening Number/Min. 2 ※ Tightening Number/ Charge ※ 2 Vibration Noise Overall Length Overall Height *incl. battery Free Speed
(N ・ m) (kg) (Bolt) (Bolt) (m/s 2 ) (dB) (mm) (mm) (rpm)
RZ2013-D-WR30 12~30 1.25 8 1040@2ah 2000@4ah <2 80 190 239 1,500~6,000
RZ2013-3-WR40 15~40 1.2 8 1136@2ah 2056@4ah <2 80 192 239 1,500~6,000
UBX-T60 18~36 1.25 8 330@2ah 750@4ah 14.4v / / 179 / 4,800
YZ-T800 15 ～ 35 1.1 8 800 <2.5 76 166 248 4,800
RZ2013-3-WR50 35~50 1.38 6 464@2ah 768@4ah <2 80 210 239 1,500~6,000
UBX-T70 25-55 1.28 8 250@2ah 570@4ah 14.4v / / 187 / 4,800
YZ-T900 30 ～ 50 1.2 6 700 <2.5 78 173 248 4,800
UBX-T80 35~65 1.4 5 480@3ah 18v / / 193 / 4,800
YZ-T950 40 ～ 60 1.2 5 650 <2.5 79 173 248 4,800
  • Tightening Number / Minute

Testing Condition

  • Tightening time: 0.5 + 1 second stop
  • Test Joint: Hard Joint
  • Room Temperature: 30℃

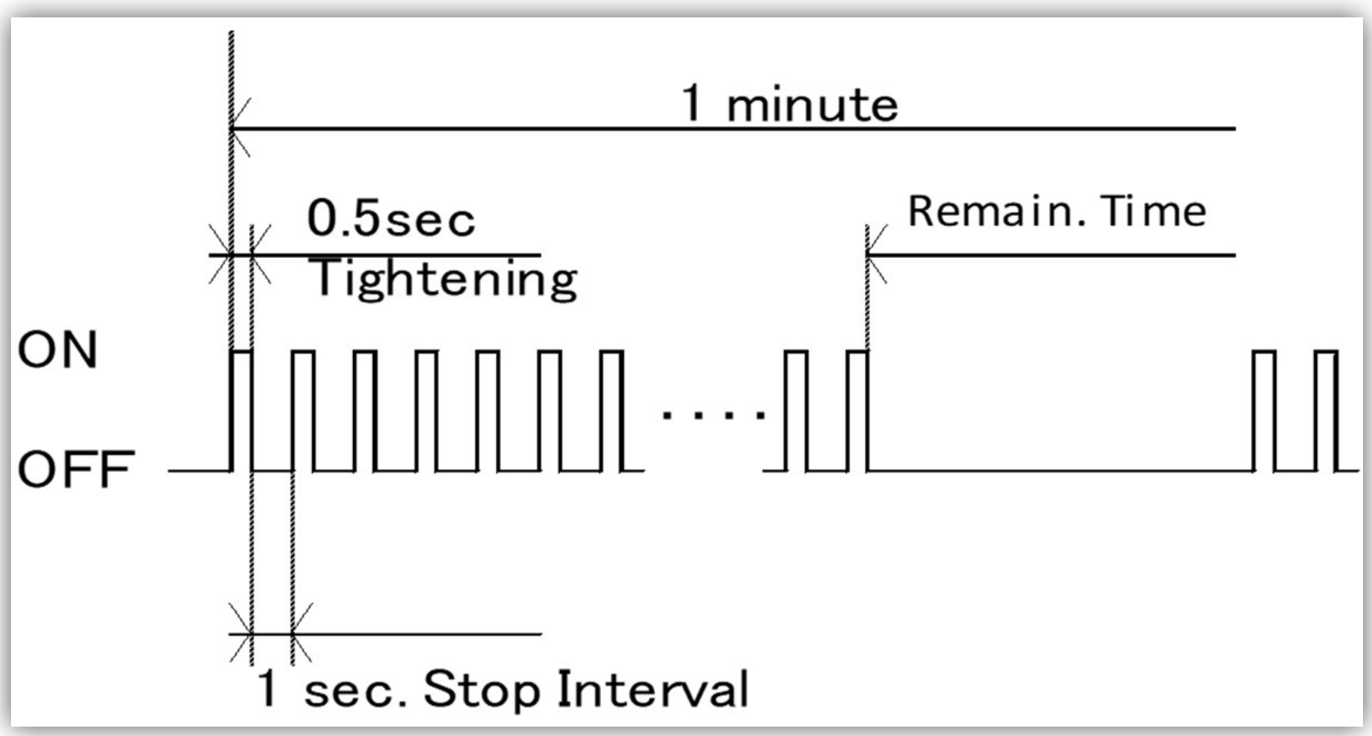

  • Operation per one minute: (0.5sec. tightening + 1sec. Stop Interval) X Number of bolts + Remaining time (60-1.5X No. of bolt) stop.

RZ4014-WR90 at 90Nm testing Operation per one minute:

(0.5sec. tightening + 1 sec. stop Interval) x 5 bolts, 52.5 sec. stop

DATA RZ4014


Non-Transducer Parameters

setting

Note: Only 'OK/NG' For RV2047, RV2048, RV2017/27/37, RZ4012, and RZ4014 since the tools does not have any transducer to sense torque and angle value.

Tools Monitor Mode

Actual Data testing

RZ2013-D-WR30: 22 Nm, M8, 8bolt/min

  •  2000 bolts / 20V 4.0Ah Battery
  •  1040 bolts / 20V 2.0Ah Battery

Testing Condition

  • Tightening time: 0.5 + 1 second stop
  • Test Joint: Hard Joint
  • Room Temperature: 30℃
  • Operation per one minute: (0.5sec. tightening + 1sec. Stop Interval) X 8 Bolts + (48 seconds) stop.
  • Tool temperature rising is less than 15 ℃

DATA RZ4014

RZ4014-WR90: 90Nm M14. 5bolt/min.

M8

  • The tool has been turned until the end and released half a turn (set on maximum torque).
  • The pulse time is set to 1 second.
  • Test M8 soft combination and record the date of 30 tightenings.
  • B2027LA 2.0Ah Battery back is being used

PERFORMANCE ON SOFT JOINT

RZ2013-3-WR50

RZ2013-WR50---Tool No.3 M8 Soft Joint
No. Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse
1-5 30.7 Nm/12 30.0 Nm/12 30.7 Nm/12 29.4 Nm/12 29.1 N-m / 12
6-10 29.6 Nm/12 31.7 Nm/12 30.9 Nm/12 29.7 Nm/12 29.2N-m / 11
11-15 29.2 Nm/12 29.7 Nm/12 31.1 Nm/12 31.3 Nm/12 31.0N-m / 12
16-20 30.3 Nm/12 30.8 Nm/12 31.3 Nm/12 33.0 Nm/14 31.9N-m / 13
21-25 33.8 Nm/13 31.9 Nm/13 31.2 Nm/13 30.3 Nm/14 31.8N-m / 13
26-30 30.1 Nm/12 33.1 Nm/13 31.8 Nm/12 33.2 Nm/14 33.7N-m / 13
RZ2013-WR50---Tool No.2M8 Soft Joint
No. Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse Torque/Pulse
1-5 33.6 Nm/ 14 30.7 Nm/14 32.8 Nm/15 31.7 Nm/14 31.5 Nm/ 14
6-10 33.5 Nm/ 14 35.3 Nm/15 34.9 Nm/14 32.4 Nm/14 33.1 Nm/ 14
11-15 33.6 Nm/ 14 31.0 Nm/14 33.5 Nm/14 34.8 Nm/14 33.7 Nm/ 14
16-20 32.7 Nm/ 13 32.2 Nm/13 32.5 Nm/14 34.9 Nm/14 34.4 Nm/ 14
21-25 31.8 Nm/ 14 35.6 Nm/15 32.9 Nm/14 34.6 Nm/14 36.3 Nm/ 14
26-30 32.3 Nm/ 14 31.1 Nm/15 34.3 Nm/15 34.3 Nm/15 34.4 Nm/ 14

M8

  • The tool has been turned until the end and released half a turn (set on maximum torque).
  • The pulse time is set to 1 second.
  • Test M8 soft combination and record the date of 30 tightenings.
  • B2027LA 2.0Ah Battery back is being used

PERFORMANCE ON SOFT JOINT

RZ2013-3-WR40

RZ2013-3-WR40---Tool No.3 M8 Soft Joint
No. Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse
1-5 22.5 Nm/12 26.2 Nm/12 23.5 Nm/12 23.9 Nm/12 22.3 Nm/12
6-10 24.0 Nm/12 24.4 Nm/11 24.0 Nm/12 23.4 Nm/11 25.2 Nm/12
11-15 24.4 Nm/11 25.2 Nm/12 22.4 Nm/12 23.8 Nm/11 26.7 Nm/12
16-20 23.9 Nm/11 26.9 Nm/13 25.2 Nm/13 24.4 Nm/11 25.0 Nm/11
21-25 27.0 Nm/13 26.3 Nm/12 25.1 Nm/11 24.6 Nm/12 26.5 Nm/13
26-30 25.3 Nm/12 26.1 Nm/11 26.6 Nm/12 27.5 Nm/13 27.2 Nm/12

RZ2013-3-WR40---Tool No.1 M8 Soft Joint

No. Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse
1-5 21.9 Nm/10 24.4 Nm/ 11 24.7 Nm/ 11 24.1 Nm/12 25.2 Nm/11
6-10 24.0 Nm/11 24.2 Nm/ 12 24.4 Nm/ 11 23.3 Nm/11 22.3 Nm/11
11-15 25.9 Nm/12 22.6 Nm/ 11 25.0 Nm/ 11 25.6 Nm/11 25.2 Nm/11
16-20 25.3 Nm/11 26.1 Nm/ 12 25.7 Nm/ 12 26.1 Nm/13 24.3 Nm/11
21-25 25.7 Nm/12 21.5 Nm/12 26.4 Nm/12 25.8 Nm/12 27.2 Nm/12
26-30 26.0 Nm/12 26.1 Nm/ 11 24.1 Nm/ 11 25.7 Nm/13 26.5 Nm/12

RZ2013-3-WR40(Tool No.1)

RZ2013-3-WR40(Tool No.3)

Cmk: 1.43 (Tolerance: 25% /Target Torque: 25Nm) CV: +/-6%

M8

  • The tool has been turned until the end and released half a turn (set on maximum torque).
  • The pulse time is set to 1 second.
  • Test M8 soft combination and record the date of 30 tightenings.
  • B2027LA 2.0Ah Battery back is being used

PERFORMANCE ON SOFT JOINT

RZ2013-D-WR30

RZ2013-D-WR30---Tool No.9 M8Soft Joint
No. Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse
1-5 19.4 Nm/10 21.2 Nm/10 22.1 Nm/11 20.8 Nm/10 18.7 Nm/ 10
6-10 19.1 Nm/10 22.5 Nm/11 21.1 Nm/10 22.5 Nm/10 21.8 Nm/ 10
11-15 22.1 Nm/10 21.0 Nm/10 22.6 Nm/10 22.7 Nm/10 23.5 Nm/ 11
16-20 22.0 Nm/12 22.7 Nm/10 23.3 Nm/11 22.5 Nm/11 23.4 Nm/ 11
21-25 22.1 Nm/10 21.8 Nm/11 21.6 Nm/10 23.1 Nm/12 23.8 Nm/ 12
26-30 22.5 Nm/11 22.7 Nm/10 24.3 Nm/12 25.0 Nm/12 23.5 Nm/ 11
RZ2013-D-WR30---Tool No.7 M8Soft Joint
No. Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse Torque / Pulse
1-5 22.1 Nm/10 20.1 Nm/11 19.5 Nm/10 20.5 Nm/11 20.6 Nm/10
6-10 17.6 Nm/10 19.5 Nm/10 17.7 Nm/10 18.8 Nm/10 19.5 Nm/10
11-15 18.2 Nm/10 20.2 Nm/10 18.9 Nm/10 18.7 Nm/10 20.1 Nm/10
16-20 20.1 Nm/11 22.4 Nm/11 19.9 Nm/10 20.3 Nm/11 21.8 Nm/11
21-25 20.0 Nm/10 20.5 Nm/11 20.7 Nm/10 20.3 Nm/10 20.0 Nm/10
26-30 20.9 Nm/10 20.5 Nm/11 21.3 Nm/11 22.9 Nm/12 20.5 Nm/11

RZ2013-D-WR30(Tool No.7) ： Cmk: 1.30 (Tolerance: 25%/Target Torque: 20Nm)

RZ2013-D-WR30(Tool No.9):

METHOD OF TESTING

  • The initial tightening height of the bolt will affect the torque. The torque tester manufacturer recommends adjusting and testing the torque with the bolt flat. During the tightening process, the friction coefficient of the bolt will increase due to the change of the hand-held angle, and the strike frequency will increase. , resulting in torque variation.
  • The start switch design of RZ2013 is two-stage---allowing the operator to slowly start the tool and align it with the hole position. However, in the process of using a torque tester, the tool needs to work at full speed to truly reflect the tool output torque.

Remark:

*When you have an abnormality, you can remove the washers or bolts to verify conditions. This means that a new set of gaskets or bolts will be used for further test.

*URYU washers will gradually deform and become flattened over time and usage. Usually professional users will have a spare set of bolts that can be replaced in case of breakage, so as not to affect production.

*The calibration is performed on the strain gauges in the main machine. The 3/8' & 1/2' probes or soft-joint bolts used in the machine are not being calibrated. These are all consumables.

TESTING ON URYU TORQUE TESTER

UDT-200A

Service and Maintenance

Component Recommended First level Maintenance Status
Oil Change 100,000 - 120,000 cycles or 6 months (whichever comes first) on soft joint 200,000 - 250,000 cycles or 6 months (whichever comes first) on hard joint Distributor can purchase their own equipment to perform oil changes.
ORING (No. 60) 100,000 - 120,000 cycles on soft joint 200,000 - 250,000 cycles on hard joint Distributor can purchase parts by themselves for material replacement operations.
Back support ring (miter) (No. 61)
Oil screw (No. 62)

RZ4014-WR90 Pulse Unit Exploding Diagram

  • First Level Maintenance

Second Level Maintenance

Component Recommended Second level Maintenance Status
Hydraulic cylinder internal spring group QL SPINDLE Second or Third oil change Maintenance requires press and assembly experience. It is recommended to return to Durofix Taiwan HQ
